Make Seamless Connections
Also known as “distribution manifolds.” Daman's standard and custom header and junction blocks are used to connect several threaded connections into one common block to eliminate leaks and reduce plumbing labor.
​
HEADER & JUNCTION BLOCKS
Standard Products
Header Blocks
Header Manifolds - 0° Design
Header Manifolds - 90° Design
Header Manifolds - 180° Design

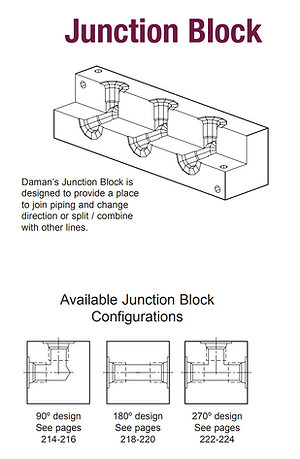

Junction Blocks
Junction Manifolds - 90° Design
Junction Manifolds - 180° Design
Junction Manifolds - 270° Design
Instantly Configure Your Custom Header and Junction
Quick Block allows Daman distributors to configure their own custom header and junction manifolds for quick quotes, models, and delivery. This creates the ability to use technology to its fullest potential by providing our distributors 3D prototypes, fast quotes and quick delivery. Expedite service available with an additional fee.
Stainless Steel Headers & Junctions
Aluminum and ductile iron have been the standard in the manifold world for years, but stainless steel is quickly becoming more common in the hydraulic manifold industry. Its strength, durability, and excellent corrosion resistance make it the optimal choice for certain applications such as subsea, mining, and corrosive environments. Other applications include oil and gas, washdown, semiconductor, and the food industry.
Daman can produce most of its standard and custom products in stainless steel, including headers and junctions and cavity body applications, and we are continuously expanding our stainless machining capabilities.
​
-
In many cases, Daman can use readily available 17-4h1150 stainless steel in place of ductile iron. It is much stronger than its more popular cousins 304 and 316. On the Rockwell C scale, it has a hardness of 28 and a yield strength of 105,000 PSI.
-
Some things to consider when choosing your material are pressure, application, and the environment where the manifold will be used. Working pressure should be considered in accordance with ISO 4413.
-
Our stainless steel products are passivated to maximize the natural corrosion resistance of the material. This process removes surface contamination that can potentially form rust or initiate corrosion.
​
As stainless steel takes on a larger role in the hydraulic manifold industry, Daman will continue to invest in equipment, tooling, and training for the expansion of our custom and standard stainless steel offerings.
